Field of Application

Dryer Fabrics and wet felts. Pin and Spiral seams of the single and double loop configuration using monofil, cabled or shielded yarns.

Overview

The new PSS5 is a new development in the field of Dryer fabric seaming based on the experience of the well proven PSS5 machine, now in operation for several years.

Existing components have been redesigned to the requirements of modern fabrics. New components have been added to increase seaming performance and to push efficiency to a new level.

Images – Footprints – Video Material

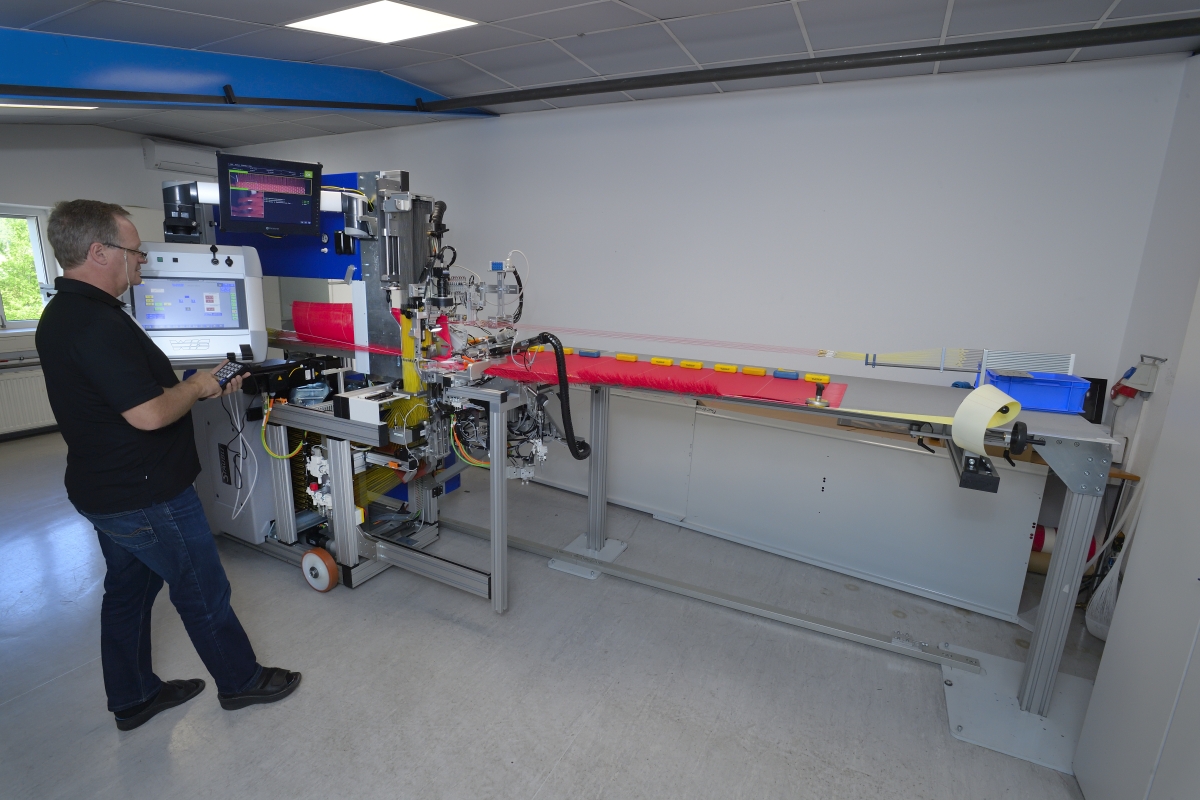

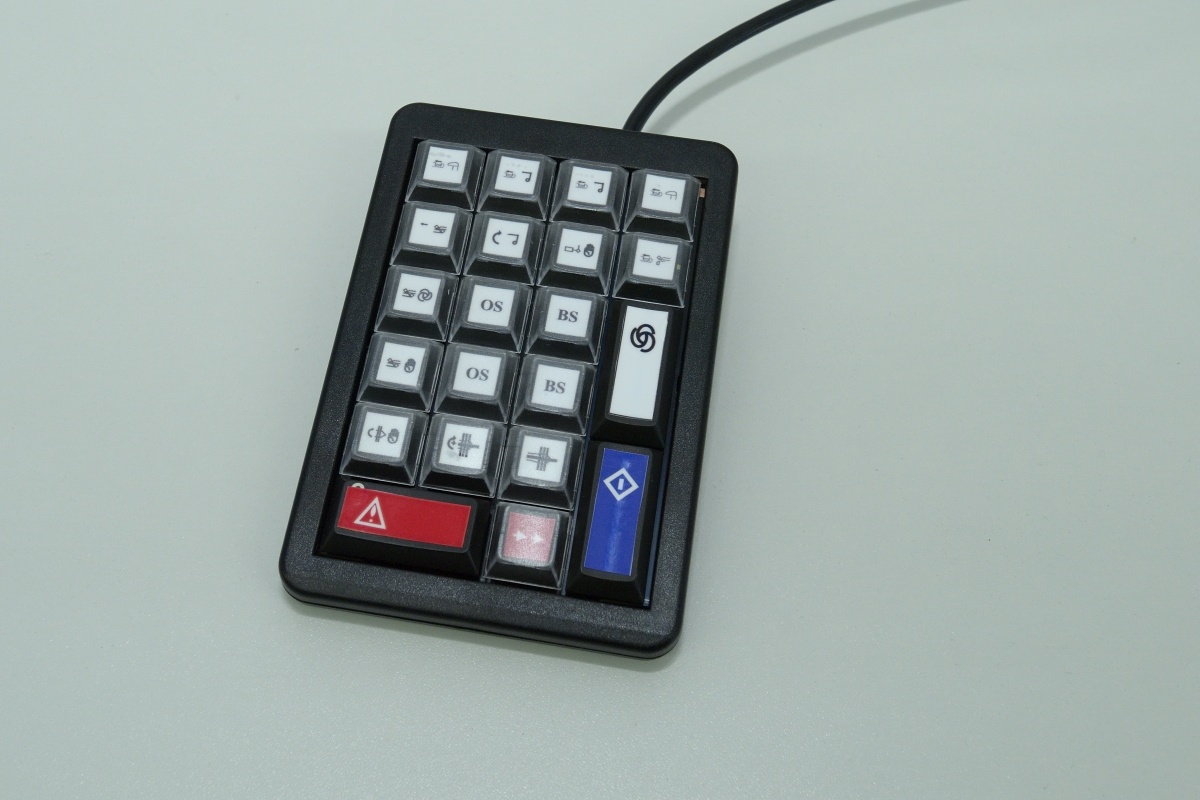

Seamatic PSS5
Seamatic PSS5
Seamatic PSS5
Seamatic PSS5
Seamatic PSS5
Seamatic PSS5
Seamatic PSS5
Seamatic PSS5
Seamatic PSS5
Seamatic PSS5

Technical Data

Seam width per side
60 – 110 mm

Seam performance
up to 5,400 threads per hour depending upon fabric design and seam width

Weft thread diameter
0.25 – 1.00 mm

Warp thread diameter
0.15 – 1.00 mm

Harness capacity
192 threads – larger capacity available upon request / extra charge incurred

Ambient temperature
0 – 35°

Humidity
20 – 80 %

Standard Features

  • Camery system CVX 450 – 5 MPixel used for driving, live picture of up to 110 mm seamwidth and optical supervision in spiral area (approx. 10mm)
  • Single double and triple layer fabric capability using flat, oval or round yarns
  • WIS windows based “splice point design” software
  • Spring box for weft thread tensioning
  • Fully electronic Stäubli Jacquard LX 62V width JC-7 controller and 192 threads
  • Touch screen operator interface
  • Adjustable harness with 192 threads
  • Double transfer arm for defined transfer of the warp to the interlace gripper
  • Possibility to seam warp thread into spiral from top and bottom
  • Different seam press widths – according to start-up fabric
  • Corner lift to assist warp insertion

Optional Features at additional costs

  • Double thread separator
  • Camera system CVX 470 – 21 MPixel used for driving, live picture of up to 110 mm seamwidth and optcal supervision of full seam width
  • “Parking of the warp thread during seaming for crossed warps in the spiral
  • Additional spring box with 300g springs (34 threads)
  • Seamers chair
  • Narrow fabric support table
  • Mouse mounted on panel for alternative operation
  • High speed camera for adjustments and fault search including mounting arm and three docking stations

Download Specifications

Documenation Seamatic_PSS5 (pdf)
