Field of Application

Endless joining of Forming fabrics for the PMC (Paper Machine Cloth) Industry

Overview

The SEAMATIC SC5 – 160/180 automate the tedious and time consuming operation of making a fabric seam by hand.

Faults are shown on the screen display, accompanied by an indication for the cause of error.

Images – Footprints – Video Material

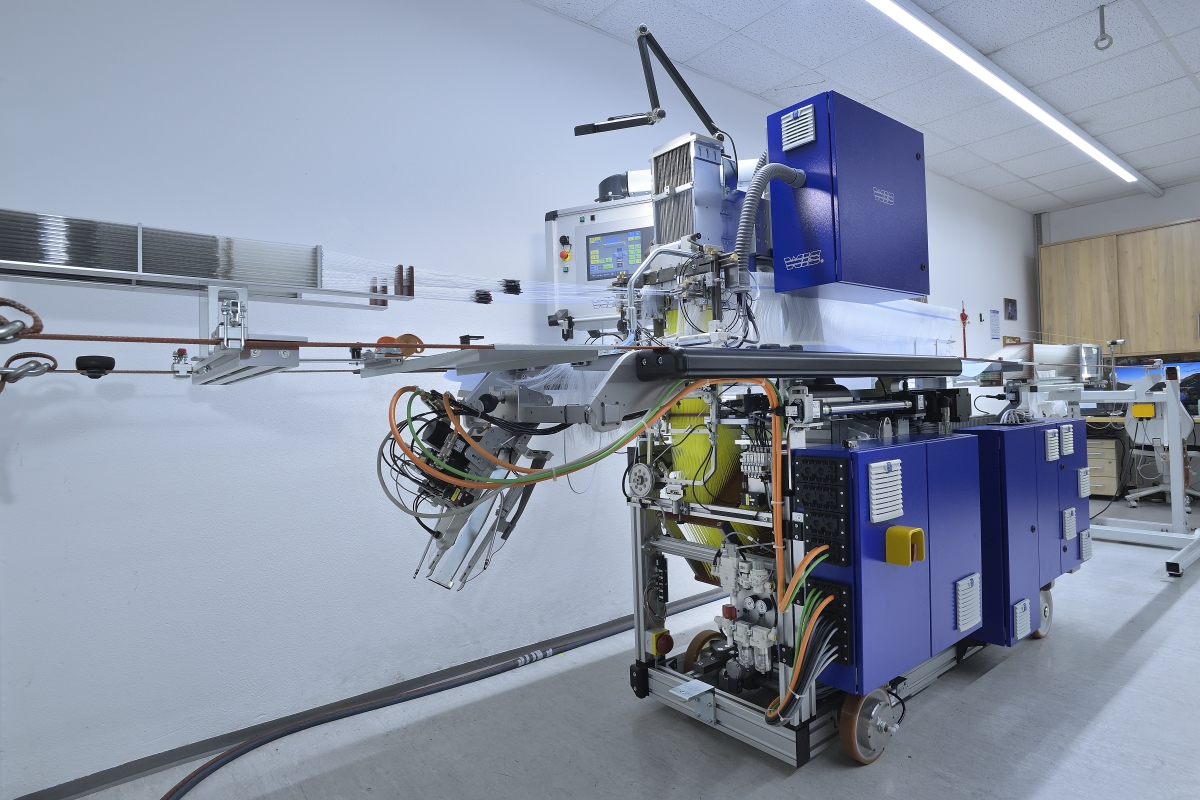

Seamatic SC5 - 160 / 180

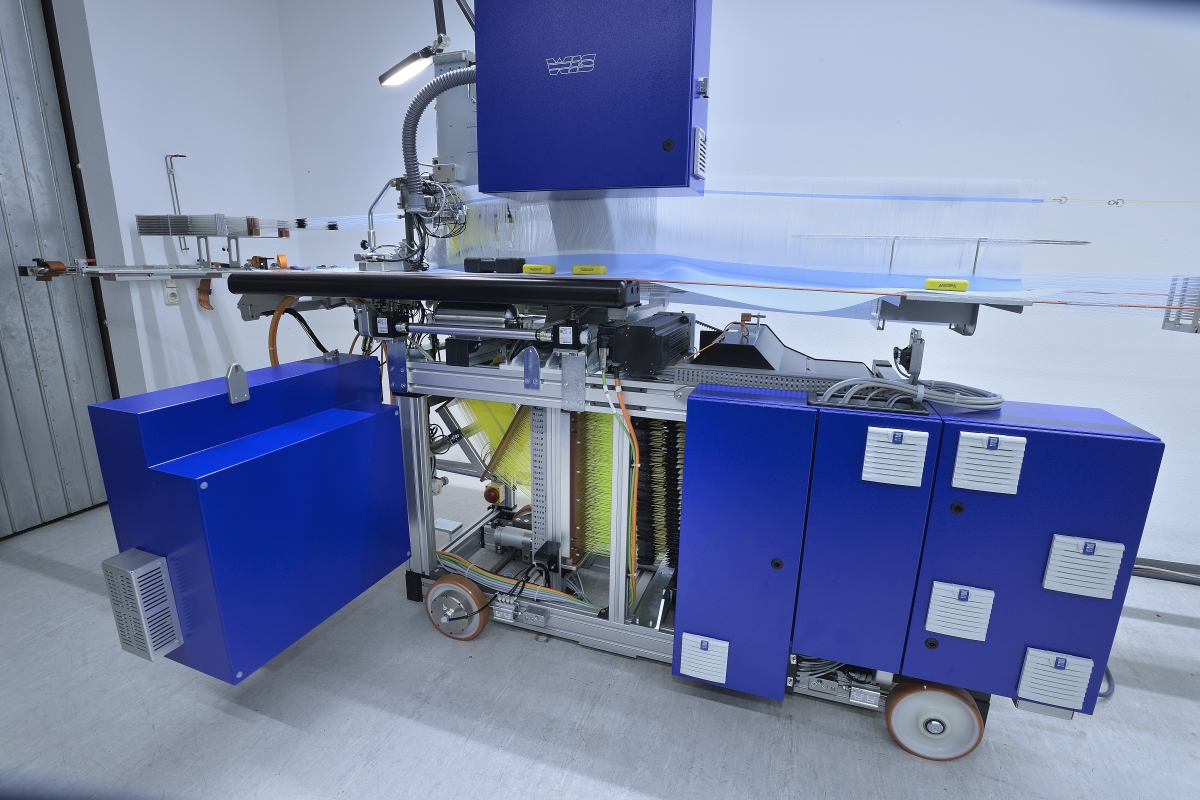

Seamatic SC5 - 160 / 180

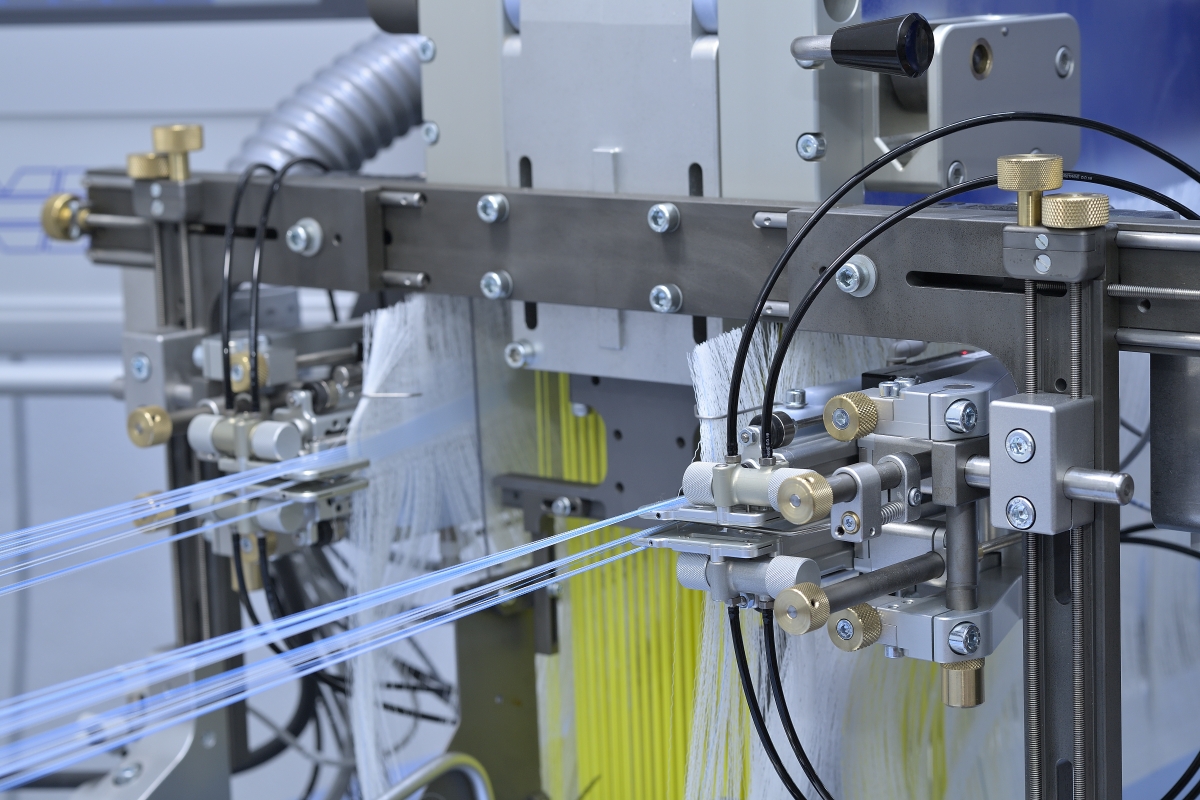

Seamatic SC5 - 160 / 180

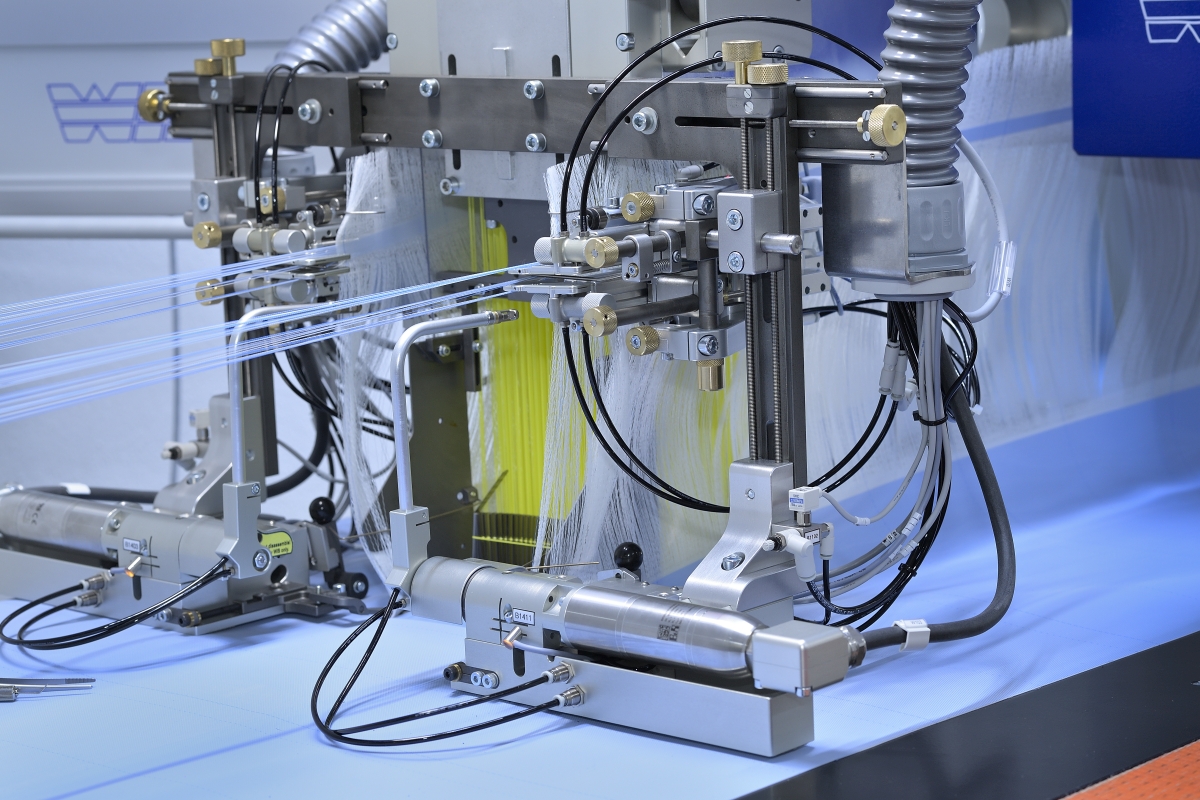

Seamatic SC5 - 160 / 180
Seamatic SC5 - 160 / 180
Seamatic SC5 - 160 / 180

Video SC5-180 – valid also for -160

Video valid for SC5 – 160 / 180

Threading up double springbox

Technical Data

Available Seam Widths:
110 – 160 mm
135 – 180 mm

Seam Performance:
up to 3,000 thread pairs per hour
depending upon fabric and seam width

Weft Thread Diameter:
0.10 – 0.40 mm
(0.004 – 0.016 inches)

Warp Thread Diameter:
0.11 – 0.38 mm
(0.0045 – 0.015 inches)

Harness Capacity:
up to 896 threads
(standard 640 threads)

Ambient Temperature:
0 – 35° C

Humidity:
20 – 80 %

Features

  • Faults are shown on the screen display, accompanied by an indication for the cause of error.
  • Fully electronic Stäubli Jacquard LX 62
  • Large shed opening – options available
  • Small Machine Footprint
  • Ergonomic Design
  • Under Seam Accessability
  • Adjustable Machine Deck Plates
  • High Speed Drive for Returning Machine to Start Position
  • Easy Adjustable Machine Table
  • Automatic Steering System
  • Touch Screen Operator Panel with Remote User Interface (Mouse)
  • Fabric Setup Information Stored on Hard Drive
  • WIS – Windows Based “Splice Point Design Software”
  • Servo Transfer Gripper
  • Individual Gripperhead Thread Fault Detection
  • Servo Interlace Gripper
  • Extra Pick for Thread Separator for Increased Efficiency
  • Balanced Servo Sley
  • High Speed Sley Wave
  • Spring Box for Individual Weft Thread Tensioning
  • Fabric Support Belt System

Optional Features

  • Adjustable Seam Press
  • Double Spring Box
  • Remote Control Magazine Band Tensioner
  • Fabric support system with 2 Stands of making a Tent in the back of the machine
  • Fabric support system with 4 Stands for seaming “in the tunnel”
  • Seamers Cart
  • Different light options
