Field of Application

Endless joining of TAD (Through Air Dryer) fabrics for the PMC (Paper Machine Clothing) Industry

Overview

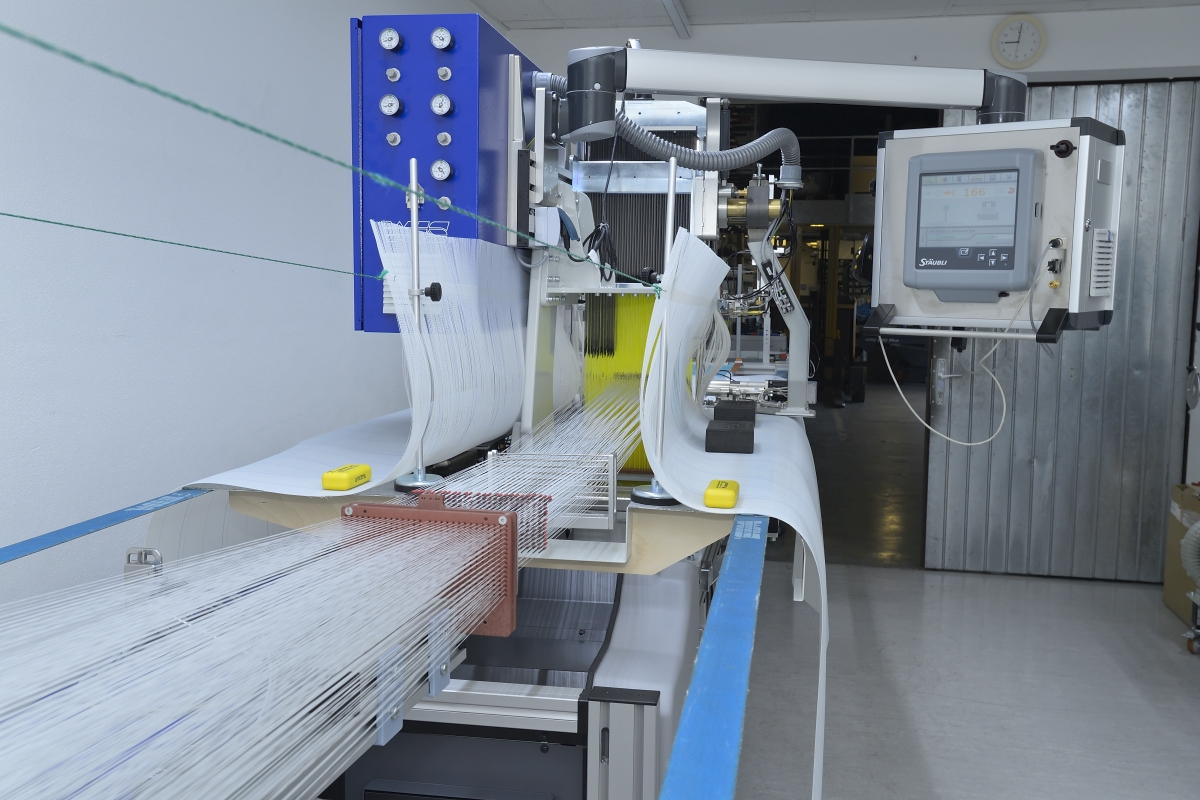

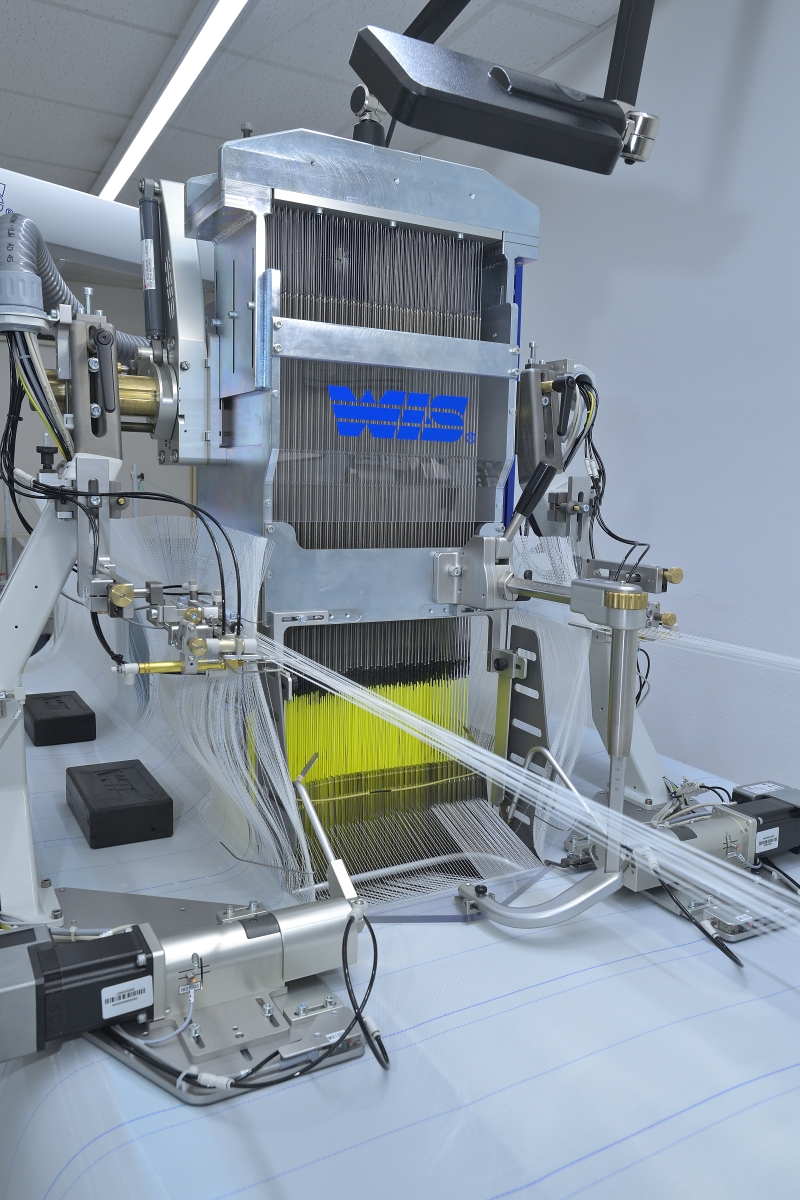

The SEAMATIC TAD automates the tedious and time consuming operation of making a fabric seam by hand.

Faults are shown on the screen display, accompanied by an indication for the cause of error.

Images – Footprints – Video Material

Technical Data

Seam Width:
360mm – 450mm

Seam Performance:
1,200 Thread pairs per hour, depending upon fabric and seam width

Weft thread Diameter:
0.10 – 0.80mm

Warp thread diameter:
0.11 – 0.80mm

Harness capacity:
up to 896 threads (Standard 640)

Ambient Temperature:
0 – 35°

Humidity:
20 – 80%

Standard Features

  • Fully electronic Stäubli Jacquard LX 62
  • Large Shed opening
  • Small machine footprint
  • PAL – Power assisted lift for Transfer Gripper system
  • Adjustable machine deck plates
  • High speed drive for returning machine to start position
  • Automatic steering system
  • Touch screen operator panel with remote user interface (Mouse or Keypad)
  • Fabric set up information stored on flash drive
  • WIS – windows based “Splice point design software”
  • Individual gripper head thread fault detection
  • Balanced servo sley
  • Spring box for individual thread tensioning

Optional Features

  • Remote control magazine band tensioner
  • Double thread separator
  • Double spring box
  • Seam cart
  • High stand
  • High speed camera
  • Camera system for visual aid

Download Specifications

Documentation TAD (will follow)
